dormakaba 8616 Architectural Grade Door Closer AL-689

dormakaba 8616 Architectural Grade Door Closer AL-689

Regular price $75.00 USD
Regular price Sale price $75.00 USD
Sale Sold out

This Dorma 8616 architectural grade, heavy duty surface closer is constructed as a highly flexible door control system for use on hollow metal, aluminum and wood doors

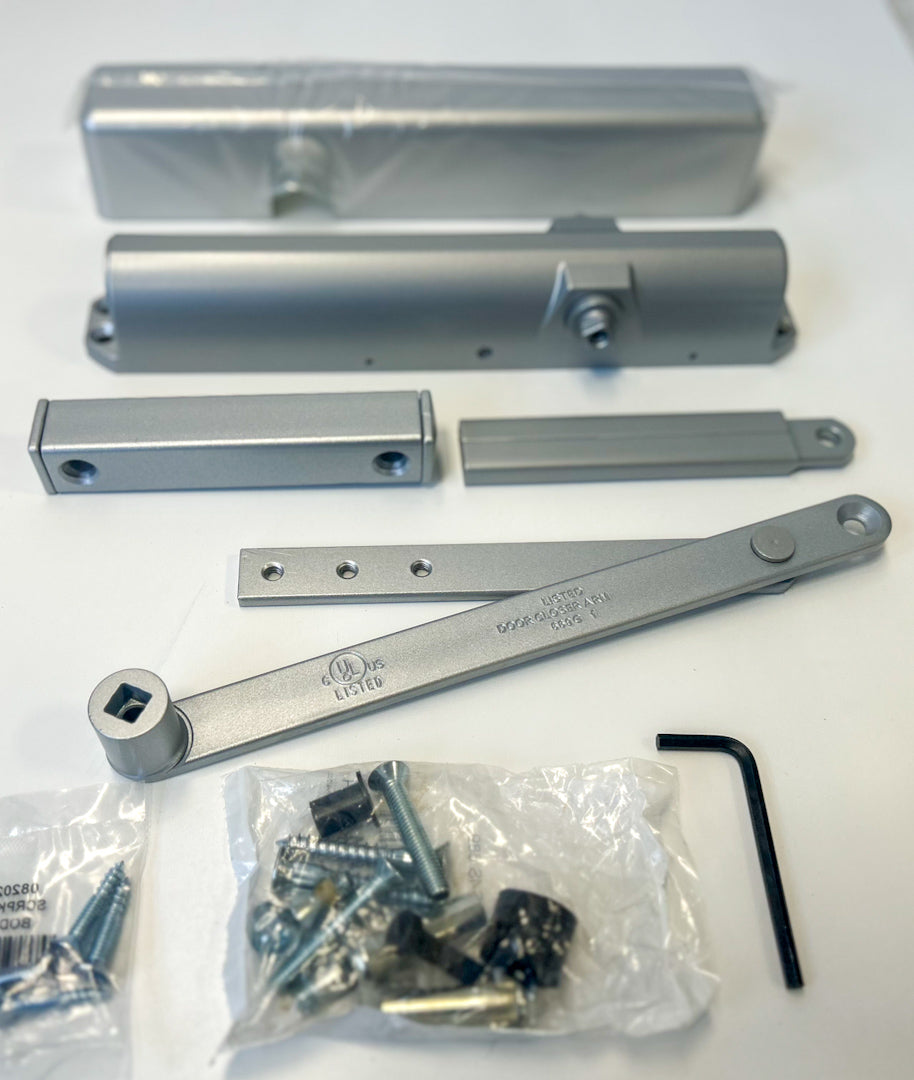

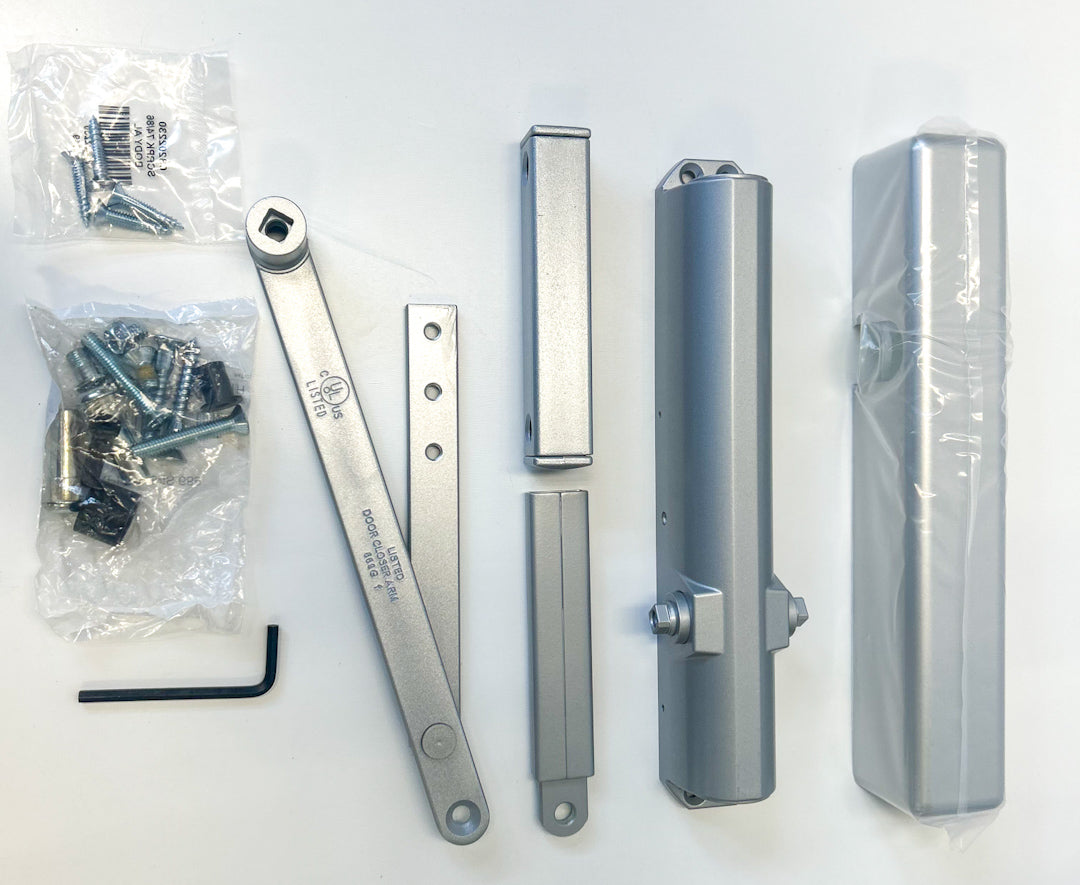

  • Package includes: body, full cover, mounting hardware and arm
  • Adjustable backcheck with positioning adjustment
  • Two adjustment valves to control sweep-speed and latch-speed
  • Adjustable spring size 1-6, shipped as size 4
  • Mounting holes are spaced 12" horizontally and 3/4” vertically (center to center)
  • Furnished with sex nuts and machine/wood combo screws for 1-3/4” thick doors



Style Door closer
Grade Heavy Duty/Architectural grade
Door Handing Non-handed (regular, top jamb and parallel armapplications)
Door Width - Interior: maximum 48"
- Exterior: maximum 42"

Materials

Dimensions
